How much overlap do PVC strip curtains need to control airflow without making doorways difficult to pass through? The answer depends on doorway dimensions, strip width, traffic frequency, and environmental conditions.
Proper PVC strip curtain overlap helps reduce gaps between strips, limiting air movement, dust infiltration, and temperature loss. However, excessive overlap can increase resistance for pedestrians and material-handling equipment.
In this guide, we'll explain how to select the right PVC strip curtains, compare strip widths and thicknesses, calculate overlap, and maintain effective coverage in warehouses, cold storage facilities, and industrial doorways.
Doorway height is an important factor when selecting PVC strip width.
Taller openings generally require wider or thicker strips to maintain stable coverage. Long, narrow strips may be more susceptible to movement caused by airflow, frequent traffic, or environmental conditions.
Wider strips can provide more substantial coverage, but they may also increase the force required to pass through the curtain.
For example, a doorway approximately 4 meters high may use 300 mm wide strips, depending on strip thickness, installation environment, and traffic requirements.
The final width should be selected according to the supplier's recommended doorway-height range rather than height alone.
PVC strip curtains are available in different widths to accommodate industrial openings and traffic requirements.
Common widths include 200 mm, 300 mm, and 400 mm.
Strip Width | Typical Applications | Main Considerations |
|---|---|---|
200 mm | Personnel doors and smaller internal openings | Lightweight and easy to pass through |
300 mm | Warehouse entrances and general industrial doorways | Balance between coverage and accessibility |
400 mm | Large industrial openings and selected equipment entrances | Greater coverage but potentially higher passage resistance |
Wider strips are often considered for taller openings, but the required width also depends on material thickness, airflow, and traffic intensity.
Strip width and overlap work together to determine the effectiveness of a PVC curtain.
Overlap refers to the portion of adjacent strips that covers the neighboring strip. This overlapping area helps reduce gaps when the strips hang naturally.
Greater overlap can improve coverage and reduce air leakage, particularly where drafts or temperature differences are significant.
However, excessive overlap may make the curtain more difficult to pass through and can increase friction between strips.
For that reason, overlap should be selected according to both environmental requirements and the movement of personnel or equipment.
PVC strip curtains come in different thicknesses to suit various traffic demands and environmental conditions.
Two common thicknesses are 2 mm and 3 mm, while ribbed PVC strips provide an additional option for demanding industrial applications.
2 mm strips: Lightweight and flexible, making them suitable for many pedestrian entrances and smaller openings.
3 mm strips: Offer greater material thickness and may be suitable for industrial doorways with more frequent contact.
Ribbed strips: Feature raised surface ribs that can help protect the main strip surface from repeated contact and abrasion.
Ribbed PVC describes the surface design rather than a specific thickness. Ribbed strips may be available in different dimensions depending on the manufacturer.
Traffic type influences the thickness and overlap required for effective curtain performance.
Pedestrian entrances generally benefit from lighter strips that move easily and return to their hanging position after passage.
Doorways used by pallet trucks or carts may require thicker material to withstand more frequent contact.
Forklift entrances often need more durable strips, appropriate mounting systems, and enough overlap to maintain coverage after equipment passes through.
However, increasing overlap is not always the best way to improve durability. Excessive material resistance can make passage more difficult and place additional stress on the mounting hardware.

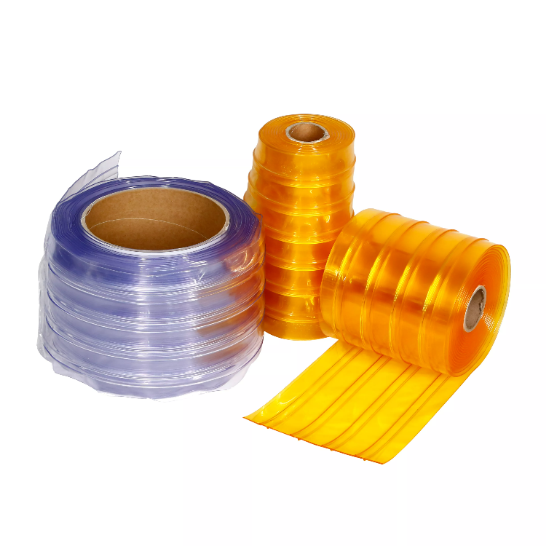

Ribbed PVC strips are commonly used where repeated contact with goods or material-handling equipment is expected.
Their raised surface design can help reduce direct abrasion against the main body of the strip.
Advantages may include:
Additional surface protection against repeated contact.
Suitability for selected industrial and forklift entrances.
Reduced direct rubbing on the central strip surface.
Potentially longer service life in appropriate applications.
Actual performance depends on strip construction, thickness, traffic conditions, and maintenance.
Ribbed strips are not automatically more transparent or easier to pass through than smooth strips.
Personnel doors generally require a balance between environmental separation and ease of passage.
For some light-duty installations, an overlap of approximately 30% may provide a practical starting point.
A lighter curtain can reduce the effort needed to walk through the opening, especially when traffic is frequent.
However, cold storage entrances or areas with significant air pressure differences may require greater coverage.
The final configuration should be verified against the mounting system and supplier specifications.
Doorways used by pallet trucks and carts need sufficient coverage while allowing equipment to pass through without excessive
resistance. An overlap of approximately 40% can offer a practical balance between environmental protection and accessibility,
particularly in warehouses and industrial work areas.
Using 3mm PVC strips with this overlap may provide additional durability against repeated contact while maintaining reasonable
flexibility. The overlapping strips help limit gaps that allow dust, insects, and temperature differences to affect adjacent spaces.
However, the overlap should be adjusted if frequent equipment movement causes excessive friction or slows operations.
Forklift entrances require careful consideration because equipment repeatedly pushes through the curtain.
An overlap of around 50% may be evaluated where stronger environmental separation is required.
However, the additional overlap also increases the amount of PVC material that equipment must displace.
For busy forklift routes, a configuration with less overlap may sometimes provide better operational performance.
Suitable strip thickness, ribbed construction, and adequate visibility are equally important.
The following ranges are illustrative starting points rather than universal industry requirements.
Traffic Type | Illustrative Overlap | Suggested Strip Characteristics | Main Priority |
|---|---|---|---|
Pedestrian Traffic | Around 30% | Flexible, lighter strips | Easy passage |
Pallet Trucks and Carts | Around 40% | Moderate thickness | Balanced coverage and durability |
Forklift Traffic | Around 50% where appropriate | Durable or ribbed strips | Environmental separation and repeated contact |
Cold Storage Entrances | Determined by thermal requirements | Suitable low-temperature PVC | Reduced air exchange |
Wind-Exposed Openings | Determined by airflow conditions | Appropriate thickness and mounting | Stable curtain coverage |
Overlap terminology and mounting arrangements vary between suppliers. A 30%, 40%, or 50% overlap must therefore be defined clearly before ordering.
In some systems, overlap is specified by the amount of adjacent strip coverage. Other systems describe it through mounting positions or repeated strip layers.
The installation environment plays an important role in determining how much PVC strip curtain overlap is needed. Indoor openings typically experience more stable conditions, while outdoor entrances are exposed to wind, rain, and changing temperatures.
The main considerations include:
Indoor applications: Moderate overlap may be sufficient for controlling drafts and dust in warehouses, workshops, and interior partitions.
Outdoor applications: Greater overlap may help reduce gaps caused by wind and air pressure differences.
Exposed industrial entrances: Thicker PVC strips and secure mounting systems may be necessary to withstand frequent movement and environmental exposure.
Although additional overlap can improve coverage, PVC strip curtains do not create a completely weatherproof or airtight seal. The final configuration should match the installation conditions and expected traffic.
Airflow control is one of the primary reasons for installing PVC strip curtains, particularly in refrigerated warehouses, temperature-controlled production areas, and loading docks.
When adjacent strips overlap correctly, they form a flexible barrier that helps reduce uncontrolled air exchange. This can limit warm air infiltration, cold air loss, and unwanted drafts.
However, overlap percentage alone does not determine thermal performance. Several factors influence the effectiveness of the curtain:
Factor | Impact on Curtain Performance |
|---|---|
Doorway Size | Larger openings may allow greater air exchange |
Temperature Difference | Greater temperature differences can increase heat transfer |
Air Pressure | Pressure differences can push strips apart |
Traffic Frequency | Frequent passage temporarily disrupts the barrier |
Strip Overlap | Appropriate coverage helps reduce gaps |
PVC Material Grade | Suitable formulations maintain flexibility at operating temperatures |
For cold storage applications, low-temperature PVC is particularly important. Standard materials may become less flexible in freezing conditions, affecting both accessibility and curtain coverage.
The best results come from combining suitable material selection, proper overlap, and correct installation.
High-traffic industrial doorways require PVC strips that can withstand repeated contact without excessive wear or deformation.
Three factors deserve particular attention:
Strip thickness: Thicker PVC can provide greater resistance to repeated mechanical contact.
Surface design: Ribbed strips may help protect the main strip surface against abrasion from forklifts or pallet trucks.
Overlap configuration: Sufficient overlap maintains coverage, but excessive overlap increases friction between adjacent strips.
Greater overlap does not automatically extend curtain lifespan. In busy entrances, unnecessary friction and resistance may contribute to wear.
A properly configured curtain should return to its hanging position after passage while allowing people and equipment to move through without excessive force.
Correct overlap helps maintain separation between adjacent spaces by reducing gaps through which air can move.
This is particularly valuable in refrigerated warehouses, cold rooms, and climate-controlled industrial facilities, where uncontrolled air exchange can increase heating or cooling demand.
Properly installed PVC strip curtains can provide several benefits:
Reduced air exchange: Helps limit the movement of warm and cold air between areas.
Improved temperature stability: Supports more consistent conditions in temperature-controlled spaces.
Dust and insect control: Reduces direct openings through which dust and flying insects may enter.
Potential energy savings: Lower unwanted air exchange may reduce the workload on heating and refrigeration systems.
For example, a refrigerated warehouse may evaluate 40–50% overlap where stronger environmental separation is needed. However, the actual reduction in energy loss depends on doorway dimensions, temperature differences, airflow, and traffic frequency.
Proper overlap helps PVC strip curtains maintain consistent doorway coverage, reducing problems caused by gaps or misaligned strips.
However, increasing overlap beyond what the application requires can create additional friction and passage resistance.
The relationship between overlap and maintenance can be summarized as follows:
Overlap Condition | Potential Effect | Maintenance Consideration |
|---|---|---|
Insufficient Overlap | Visible gaps and reduced environmental separation | Adjust strip positioning or mounting |
Appropriate Overlap | Balanced coverage and accessibility | Routine inspection and cleaning |
Excessive Overlap | Greater friction and passage resistance | Reassess overlap and traffic requirements |
Durability also depends on PVC quality, thickness, surface design, mounting hardware, and operating temperature.
Regular inspections should focus on damaged edges, scratches, deformation, and changes in strip alignment. Replacing worn strips promptly helps preserve curtain performance without necessarily replacing the entire assembly.
A properly designed PVC strip curtain should provide environmental separation without unnecessarily restricting movement.
For pedestrian entrances, lighter strips with suitable overlap can make passage easier while maintaining coverage. Transparent material also supports visibility between adjacent areas.
For pallet trucks and forklifts, the curtain must accommodate repeated equipment movement. Thicker or ribbed PVC strips may improve resistance to mechanical contact, but excessive overlap can increase the force required to pass through.
To improve accessibility and operational safety, consider the following:
Maintain sufficient visibility through the curtain.
Select strip thickness according to traffic intensity.
Avoid excessive overlap that interferes with regular passage.
Keep strips clean and replace damaged or heavily scratched sections.
Provide appropriate traffic controls where pedestrians and vehicles share an entrance.
The goal is not to maximize overlap, but to achieve effective coverage while maintaining safe and convenient access.
Start by measuring your doorway’s width and height accurately. Use a tape measure to get exact dimensions. This ensures you pick the right strip width and overlap, avoiding gaps or excessive resistance.
For door height, choose strip widths that prevent curling or flapping. For example, 300mm strips suit doors around 4 meters tall.
Calculate overlap based on traffic type: 30% for personnel, 40% for pallet trucks, 50% or more for forklifts.
Overlap means each strip covers part of the next one. For 300mm strips at 40% overlap, each strip overlaps 120mm of the adjacent strip.
Proper measurements avoid under- or over-coverage, which can cause energy loss or difficulty moving through the curtain.
Correct hanging is essential for maintaining consistent coverage.
During installation:
Mount the suspension rail securely and keep it level.
Use brackets and fasteners compatible with the selected PVC strips.
Arrange strips according to the specified overlap.
Check that strips hang vertically without twisting.
Confirm that the bottom clearance suits the floor and traffic conditions.
Test how the curtain moves when pedestrians or equipment pass through.
The strips should return naturally to their hanging position without remaining folded or displaced.
Bottom clearance should be selected carefully to reduce unwanted gaps while avoiding dragging and excessive wear.
Regular inspection helps maintain curtain coverage and durability.
Check for cracked strips, curling edges, excessive scratches, and damaged mounting components.
Cleaning with suitable mild cleaning products can help preserve visibility and surface condition.
When strips become damaged, replacing individual sections may restore effective coverage without replacing the entire curtain.
After maintenance, confirm that adjacent strips still overlap correctly.
It is also useful to examine whether repeated equipment contact is causing strips to shift or wear unevenly.
Selecting the correct PVC strip curtain overlap requires balancing environmental protection, durability, and ease of access. Strip width, thickness, and overlap should be chosen according to doorway dimensions, operating temperature, airflow, and traffic conditions rather than relying on a single standard percentage.
For pedestrian entrances, lighter strips and moderate overlap may be sufficient. Industrial and forklift doorways may require more durable materials, ribbed surfaces, or greater coverage, depending on the application. Accurate installation and regular maintenance are equally important for long-term performance.
Qingdao Coseal offers PVC strip curtain products for different industrial applications. Reviewing doorway measurements and operating requirements helps buyers select a curtain configuration that provides suitable coverage without unnecessarily restricting movement.
An overlap of approximately 30% for pedestrian entrances, 40% for pallet truck areas, and 50% for selected forklift applications may be used as preliminary guidance. Actual requirements depend on strip dimensions, environmental conditions, and the manufacturer's mounting system.
Overlap reduces gaps between adjacent strips and can help limit unwanted air exchange. This may improve temperature control in refrigerated or climate-controlled spaces, although actual energy savings depend on doorway size, airflow, and traffic frequency.
Ribbed PVC strips feature raised surfaces that can provide additional protection against abrasion from repeated contact. They may be suitable for forklift entrances and other industrial areas where strip wear is a concern.
Measure the doorway width and height, select a suitable strip width, and determine the required shared coverage between adjacent strips. Then confirm the mounting layout and overlap specifications with the curtain supplier.
