Looking for an affordable way to complete a curtain installation? PVC pipes can be used to build lightweight DIY curtain rods, while commercial PVC curtain products provide practical solutions for industrial, commercial, and workspace separation. In this guide, you’ll learn how PVC curtain rods compare with metal rods, how to choose the right size, and how to build and maintain your own setup.
When choosing curtain rods, PVC pipe and black iron plumbing pipe are two popular options for DIY industrial-style rods. Each material has its own strengths and weaknesses, especially in cost, durability, appearance, and curtain weight suitability.
Feature | PVC Curtain Rods | Black Iron Pipe Rods |
|---|---|---|
Cost | Usually under $25 per setup | Usually $50–$75 per rod |
Weight | Lightweight | Heavy |
Installation | Easy for one person | May require two people |
Cutting | Uses a handsaw or PVC cutter | Requires metal-cutting tools |
Durability | May sag under heavy weight | Strong and highly durable |
Appearance | Needs paint for a metal look | Natural industrial finish |
Best For | Light or medium curtains | Heavy curtains |
Window Size | Small or medium windows | Large or wide windows |
Support | Needs center support on long spans | Usually needs less support |
PVC rods cost less upfront and save money on tools and hardware. Metal rods have a higher initial cost but provide greater long-term durability, especially for heavy-duty use.
Comparison | PVC Curtain Rods | Metal Curtain Rods |
|---|---|---|
Cost | Affordable with lower tool and hardware costs | More expensive but durable for long-term use |
Durability | Suitable for light to medium curtains; may need center supports | Strong enough for heavy curtains and wide spans |
Weight | Lightweight and easy to install | Heavier and more difficult to install |
Appearance | Needs spray paint to create a metal look | Has an authentic metal finish |
Curtain Weight | Best for light to medium curtains | Best for heavy curtains and drapes |
Window Size | Ideal for small to medium windows; supports allow wider spans | Ideal for large windows and wide spans |
Choosing the right PVC curtain rod size helps your curtains hang properly and creates a balanced appearance.
Measure the width of your window frame from edge to edge. Use a sturdy tape measure and record the number.
Next, decide how far the curtain rod should extend beyond the window. Curtain rods usually extend 6 to 12 inches past each side. This extra length can make the window appear larger and allow more natural light into the room when the curtains are open.
For example, if your window is 36 inches wide and you add 6 inches on each side, the rod should be approximately 48 inches long.
Extending the rod 6 to 12 inches beyond each side is a general guideline. However, furniture, wall art, and available wall space may affect the final length.
Use a shorter extension if furniture sits close to the window. Choose a longer extension to create visual balance or make the window a stronger focal point.
A curtain rod that is too short can make the window feel cramped. A rod that is too long may overwhelm the wall or interfere with nearby decorations.
Consider the curtain style as well. Full or heavy curtains may require more rod space so they can stack neatly when open. Lightweight curtains generally require less space.
Use graph paper or plain paper and a ruler to sketch the window and surrounding wall. Mark the window width, rod extensions, and total rod length.
Also mark the locations of center supports if the rod will cover a wide span. Careful planning helps prevent cutting and installation mistakes.
Tip: Measure twice and cut once. It is easier to shorten a PVC pipe than to add length after cutting.
Gathering the right materials and tools helps create a sturdy curtain rod with a clean, professional appearance.
3/4-inch Schedule 40 PVC Pipe: Its thicker wall provides enough strength for most lightweight and medium-weight curtains.
3/4-inch 90-Degree PVC Elbows: Use two elbows for each rod to create the industrial-style bends where the rod meets the wall.
3/4-inch PVC Conduit Fittings: These fittings connect the elbows to the floor flanges.
3/4-inch Floor Flanges: The flanges secure the curtain rod assembly to the wall.
3/4-inch PVC Tees: Add optional tees as center supports for rods wider than 48 inches or rods holding heavier curtains.
Spray paint helps PVC pipe resemble an industrial metal curtain rod.
Hammered Black Spray Paint: Creates a textured, hammered-metal appearance.
Textured Black Spray Paint: Produces a matte industrial finish and reduces the pipe’s plastic appearance.
Apply two light coats and allow enough drying time between coats.
Measuring Tape: Measures the window and pipe length.
Marker: Marks cutting lines on the pipe.
Handsaw or PVC Pipe Cutter: Cuts the pipe to the required length.
Cordless Drill: Drills mounting holes and secures the flanges.
Drywall Anchors: Secure the flanges when wall studs are unavailable.
Level: Keeps the curtain rod straight during installation.
Safety Goggles and Gloves: Protect against cutting debris and sharp edges.
Secure the PVC pipe before cutting to prevent slipping or cracking.
Lay out every component before painting and assembly.
Apply spray paint in a well-ventilated area.
Allow the paint to dry completely before connecting the fittings.
Tip: Pair 3/4-inch Schedule 40 PVC pipe with textured or hammered black spray paint for a good balance of strength and industrial style.
Follow these steps to build a lightweight PVC curtain rod that resembles a metal industrial-style rod.
Measure the required rod length based on the window width and planned extensions. Mark the cutting point with a fine-point marker.
Also mark approximately 1-inch connector pieces for joining the elbows, tees, and conduit fittings.
Secure the pipe on a workbench or with a clamp. Cut along the marked line using a PVC pipe cutter or handsaw.
Work slowly to prevent cracking and create a straight edge. Always wear safety goggles and gloves while cutting.
Arrange the following components on a protected surface:
Long PVC rod sections
Short connector pieces
Elbows
Tees
Conduit fittings
Floor flanges
Placing everything together helps confirm that all required parts are available before painting.
Shake the spray paint thoroughly. Hold the can approximately 10 inches from each component and apply a light, even coat.
Allow the first coat to dry before applying a second coat. Rotate each piece during painting to cover all sides.
Textured or hammered black paint creates the most convincing metal-like finish.
Once the paint is completely dry, insert the short PVC connectors between the elbows, tees, and conduit fittings.
Connect the long PVC pipe sections to the elbows and optional center tees. Attach the conduit fittings to the floor flanges.
Avoid permanently gluing the components if you want to disassemble the rod for cleaning, repainting, or curtain replacement.
Hold the assembled curtain rod against the wall. Use a level to ensure it is straight, then mark the flange screw holes with a pencil.
Remove the rod and drill pilot holes. Install drywall anchors when wall studs are unavailable.
Secure the floor flanges without overtightening them. A small amount of movement can make final rod assembly easier.
Add curtain rings or panels before connecting the final elbow if required.
Attach the conduit fittings to the floor flanges, then connect the elbows, tees, and PVC rod sections. Check that every component fits securely.
Tip: Secure the PVC pipe firmly before cutting to produce cleaner, straighter cuts.
Proper support and basic maintenance can help a PVC curtain rod remain straight and attractive for years.
Add a center support if the curtain rod spans more than 36–46 inches. Long PVC pipes can sag over time, especially when supporting heavier fabric.
Install a PVC tee in the middle of the rod for additional strength. For extra-wide windows, place multiple supports at intervals of 36–46 inches.
Use the following methods to reduce bending:
Choose 3/4-inch Schedule 40 PVC pipe.
Add center supports with PVC tees.
Secure the floor flanges to wall studs when possible.
Use strong drywall anchors when studs are unavailable.
Avoid long unsupported spans.
Limit PVC rods to lightweight or medium-weight curtains.
Black iron or another metal rod may be more suitable for very heavy drapes.
To improve the durability of the painted finish:
Lightly sand the PVC surface before painting.
Apply two light coats instead of one heavy coat.
Allow each coat to dry completely.
Avoid scraping or knocking the rod.
Repair chips with matching spray paint.
Leaving the PVC components unglued makes the curtain rod easier to maintain.
When changing curtains or repainting the rod:
Detach the rod from the floor flanges.
Separate the elbows, tees, and pipe sections.
Clean or repaint the components.
Reassemble and reinstall the rod.
PVC curtain rods can last for years when they are properly supported and used with suitable curtains. Center supports help prevent sagging, while careful surface preparation improves paint durability.
PVC works best for lightweight to medium-weight curtains. Choose a metal rod for very heavy curtains or wide unsupported spans.
Tip: Add a PVC tee support every 36–46 inches on longer rods to reduce sagging and maintain strength.
PVC curtain rods provide an affordable and customizable option for lightweight to medium-weight curtains. They are easy to cut, paint, assemble, and install with basic DIY tools.
Using Schedule 40 PVC pipe, durable spray paint, and properly spaced center supports improves both appearance and performance. For heavy curtains or wide unsupported spans, black iron pipe remains the stronger option.

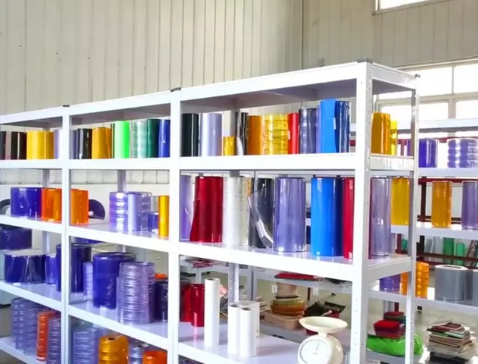

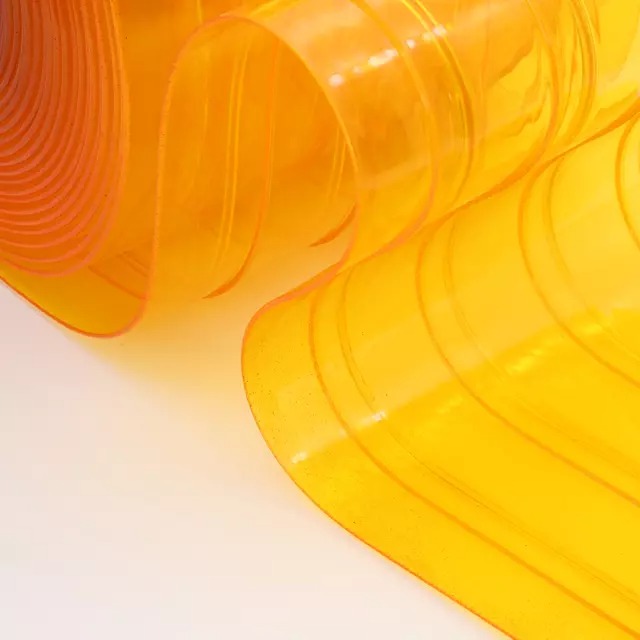

Beyond DIY curtain rods, Qingdao Coseal offers PVC curtain products for warehouses, workshops, commercial entrances, and industrial facilities. Explore the available options to find a practical PVC curtain solution for workspace separation, environmental control, and daily operation.
A: A PVC curtain rod is a lightweight DIY rod made from PVC pipe and fittings. It offers an affordable alternative to a traditional metal curtain rod.
A: PVC rods cost less and are easier to install. Metal rods are stronger and better for heavy curtains or wide spans.
A: Center supports help prevent sagging on rods longer than 36–46 inches, especially when supporting medium-weight curtains.
A: Yes. Light sanding, proper surface preparation, and two thin coats can create a durable finish.
A: The final cost depends on the rod length, fittings, paint, and mounting hardware. PVC is generally more affordable than black iron pipe.
